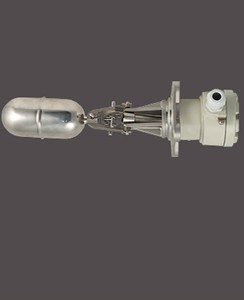

NIVOMAG MK-200 series magnetic float level switches are used for point level detection and level control of liquids in all types of vessels.. Measurement principal: a non contact coupling system is realised by the permanent magnet of the float placed in the tank that can activate the microswitch situated in the housing mounted on the outside. The great variety of both the top and side mounted versions makes it easy to install the switch in any tank at any location. For the simplest level switching you can select models with fixed hysteresis, while for level control application we offer Nivomag switches with adjustable hysteresis. Models with rubber or silicon sleeves can be applied for contaminated liquids. You can fit the Nivomag switch with an MMK type tester, to check the switching function even when the liquid levels aren’t changing.
Operating Principle:
Magnetic CouplingFeatures:
- Operation without power supply
- Micro-switch separated from process
- All wetted parts stainless steel
- Side or top mounting
- Fixed or adjustable switch differential
- Submersible versions
- Various process connections
- Operational check via optional tester
- Explosion-proof models
- SIL1 Safety Integrity Level
- Marine approvals
Application:
- Liquids with min. 0.7 oz/ft3 density
- Fail-safe and control level switches in closed tanks
- Power stations, chemical, petrochemical and pharmaceutical industry
- Supplementary fail safe switch if combined with other devices
- Balance tanks on ships
Specification:
- Switch rating: 250 V AC, 10 A
- Ambient temperature: -4 °F to +176 °F
- Medium temperature: up to +482 °F
- Medium pressure: max. 363 psig
- Process connection: square and standard flanges, 2” thread
- Ingress protection: IP 65, IP 68
- Ex marking: ATEX II 1/2 G EEx dme IIC T6..T2 (TÜV)
- Certificates: SIL1 Safety Integrity Level
- Shipping approvals: o Germanischer Lloyd (GL) o Det Norske Veritas (DNV) o Bureau Veritas (BV)
